Uva Cavallina: ampelometry

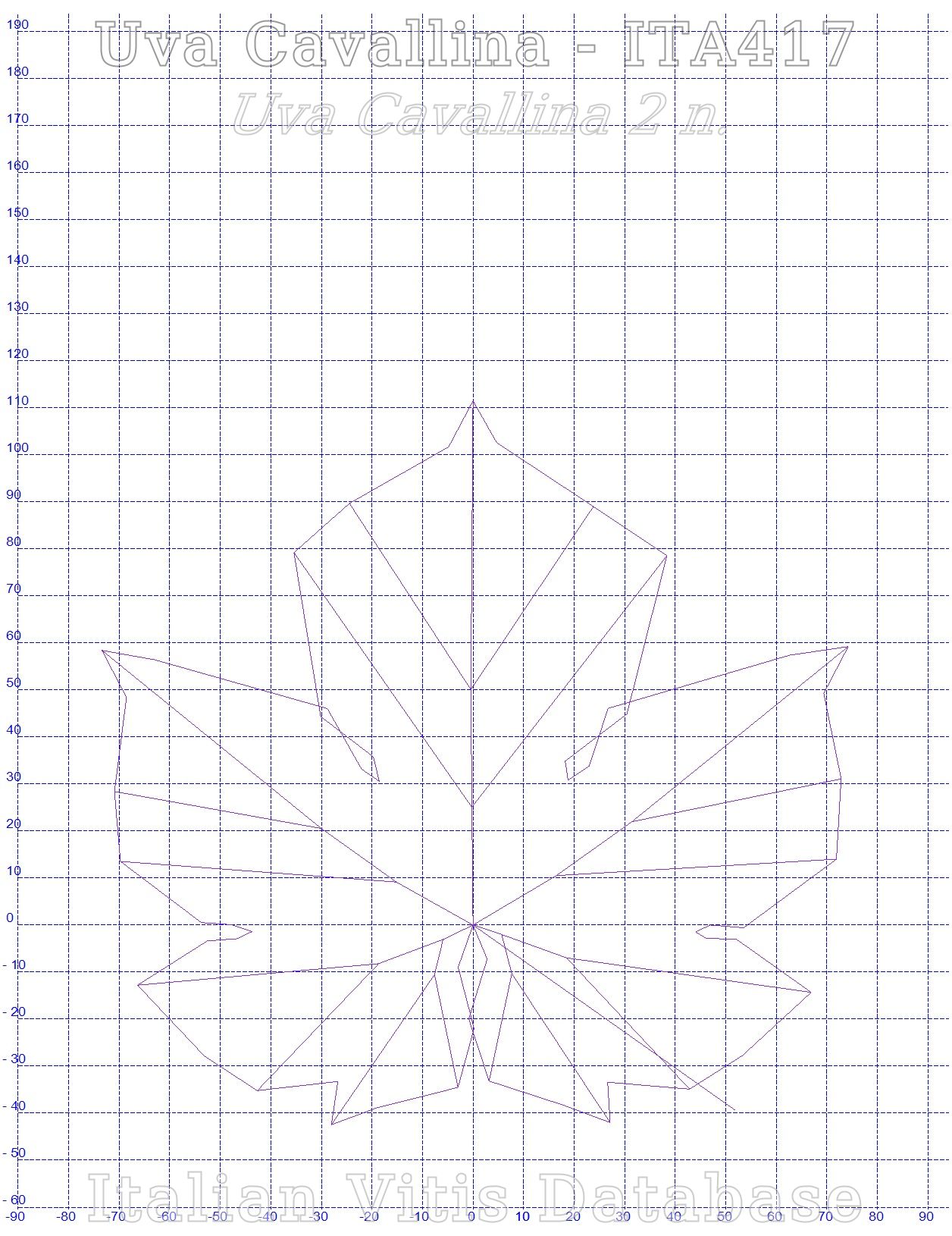

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 3 short (105 mm)
602 PDF Mature leaf: length of vein N2 5 medium (105 mm)
603 PDF Mature leaf: length of vein N3 5 medium (75 mm)
604 PDF Mature leaf: length of vein N4 9 very long (55 mm and over)
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus 1 very short (30 mm)
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus 3 short (45 mm)
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification 7 large (56°-70°)
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification 5 medium (46°-55°)
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification 7 large (56°-70°)
610 PDF Mature leaf: angle between N3 and the tangent between petiole point 9 very large (> 70°)
611 PDF Mature leaf: length of vein N5 2 (3) between very short and short
612 PDF Mature leaf: length of tooth N2 3 short (10 mm)
613 PDF Mature leaf: width of tooth N2 3 narrow (10 mm)
614 PDF Mature leaf: length of tooth N4 3 short (10 mm)
615 PDF Mature leaf: width of tooth N4 3 narrow (10 mm)
616 PDF Mature leaf: number of teeth between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 including the limits 5 medium (about 5-6)
617 PDF Mature leaf: length between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 7 long (56-70 mm)
618 PDF Mature leaf: opening/overlapping of petiole sinus 4 between open and closed
superampelo
distances
descriptor value standard deviation
Leaf width 150.300 12.100
Leaf length Including the petiole 178.400 12.900
Leaf length 157.800 13.300
Distance between the ends of veins N2 and N2' 149.300 14.800
Distance between the ends of veins N3 and N3' 134.100 10.200
Petiole length 67.000 4.700
Length of vein N1 111.500 9.000
Length of vein N2 95.800 8.100
Length of vein N2' 94.500 9.300
Distance between the ends of veins N4 and N4' 56.300 5.200
Width of petiole sinus / Distance between points SP and SP' 1.300 7.500
Distance between petiole point and end of vein N4 50.500 5.000
Distance between petiole point and end of vein N4' 52.100 3.400
Length of vein N3 68.800 6.100
Length of vein N3' 68.800 4.400
Length of vein N5 21.500 6.400
Length of vein N5' 24.800 3.600
Length of vein N4 45.700 5.900
Length of vein N4' 46.500 3.300
Distance from the petiole sinus to the upper right sinus 36.200 6.300
Distance from the petiole sinus to the upper left sinus 36.000 5.600
Vein N3, length from the petiole sinus to vein N4 6.200 1.700
Vein N3', length from the petiole sinus to vein N4' 6.800 2.100
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 59.000 14.200
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 59.300 10.500
Distance from the petiole sinus to the lower right sinus 44.400 11.700
Distance from the petiole sinus to the lower left sinus 44.300 9.400
Altezza del dente posto all’estremità di N2' 9.800 1.900
Height of the tooth on the end of N4 7.800 1.400
Height of the tooth on the end of N2 10.400 1.700
Base of the tooth located at the end of N2' 10.000 1.700
Base of the tooth located at the end of N4 10.200 1.100
Height of the tooth on the end of N4' 8.600 1.400
Base of the tooth located at the end of N2 10.800 1.100
Base of the tooth located at the end of N4' 10.000 1.300
angles
descriptor value standard deviation
Angle between N2 and N3 measured at the first bifurcation 52.000 9.200
Angle between N2 and N3' measured at the first bifurcation 55.800 5.300
Angle between N1 and N2 measured at the first bifurcation 58.700 5.400
Angle between N1 and N2' measured at the first bifurcation 58.600 6.300
Angle between N1 and N2 measured at the ends of the veins 51.400 8.000
Angle between N1' and N2' measured at the ends of the veins 51.900 8.000
Angle between N3 and N4 at the first fork of N3 55.700 5.600
Angle between N3' and N4' 56.600 5.000
Angle between N3 and N4 measured at the ends of the veins 44.700 7.500
Angle between N3' and N4' measured at the ends of the veins 45.600 3.300
Angle between N2 and N3 measured at the ends of the veins 50.700 6.400
Angle between N2' and N3' measured at the ends of the veins 49.000 6.400
Angle between S and S' with the center in N1 26.100 4.600
Angle between I and I' with the center in N1 42.200 6.300
Angle of opening of the petiole sinus measured at SP and at SP' 14.900 7.700
Angle between D and D' with the center in N1 96.700 9.400
Angle between N2 and N3 measured at the petiole point and between N2 and N3 tooth tip 71.300 12.700
Angle between N2 and N3 measured at the petiole point and between N2' and N3' tooth tip 73.900 5.700
Sum of the angles alpha' + beta' 114.400 7.500
Sum of the angles alpha + beta + gamma 166.500 12.200
Sum of the angles alpha + beta 110.800 11.300
Sum of the angles alpha' + beta' + gamma' 171.000 10.000
rations
descriptor value standard deviation
Multiplication between length and width of the leaf 23784.700 3398.000
Ratio between length and width of the leaf 1.053 0.087
Ratio between the distance from the sinus and the length of the vein N2' 0.381 0.051
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.647 0.160
Ratio between the length of the petiole OP and the length of the vein N1 0.602 0.030
Ratio between the distance from the sinus and the length of the vein N2 0.379 0.065
Ratio between the length of the vein N2' and the length of the vein N1 0.851 0.084
Ratio between the length of the vein N3 and the length of the vein N1 0.619 0.069
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.643 0.117
Ratio between the length of the vein N2 and the length of the vein N1 0.860 0.038
Ratio between the length of the vein N4' and the length of the vein N1 0.419 0.035
Ratio between the length of the vein N5 and the length of the vein N1 0.195 0.065
Ratio between the length of the vein N3' and the length of the vein N1 0.618 0.031
Ratio between the length of the vein N4 and the length of the vein N1 0.411 0.052
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.026 0.005
Ratio between the height and the base of the teeth of the right side 1.263 0.096
Ratio between the length of the vein N5' and the length of the vein N1 0.223 0.036
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.025 0.004
Ratio between the height and the base of the tooth at the end of the vein N2' 0.983 0.099
Ratio between the height and the base of the tooth at the end of the vein N4 0.766 0.119
Ratio between the height and the base of the teeth of the left side 1.269 0.151
Ratio between the height and the base of the tooth at the end of the vein N2 0.958 0.112
Media of the base of the teeth of the right side 5.722 0.856
Media height of the teeth of the left side 7.329 1.105
Ratio between the height and the base of the tooth at the end of the vein N4' 0.862 0.107
Media height of the teeth of the right side 7.173 0.636
Media of the base of the teeth of the left side 5.837 1.091
